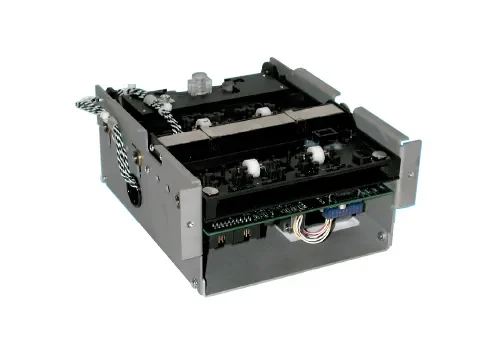

| Features | It’s here… the New EZscan V from PDI… the high-speed half-page scanner that provides the highest quality image available on the market. EZscan IV is ideal for a variety of applications including point of sale for lottery, wagering, test scoring, banking and business forms. EZscan IV automatically transports and scans forms from A6-size down to 2.75 inch-wide personal checks… and its bi-directional transport permits straight through or reciprocating operation. EZscan IV connects with a high-speed USB 2.0 port and can scan both sides of a form simultaneously. The scanner’s hardware and software automates form design, expedites form handling and simplifies data decoding. The scanner captures document images with command selectable at 100, 200 or 400 dpi and scans forms on a line-by-line basis up to 22 ips. Image data is available in 8-bit grayscale or bitonal (b/w) formats. Proprietary PC software decodes mark-sense data (OMR), OCR, bar code and MICR data. The mechanism is designed for an easy fit as an OEM subassembly into most terminal enclosures. Bi-directional transport permits straight through (eject rear) or reciprocating (eject front) operation…with the ability to pay Brand or cancel a paid ticket with a high-density thermal print head or ink-jet print head prior to ejecting. An advanced optical system design provides the highest quality image available by minimizing sensitivity to creases and folds which results in unparalleled accuracy and successful data decode. Handles forms in sizes ranging from 2.75” wide personal checks up to a maximum of 4.25” W. x 11.00” L. or A6-size documents. Contains document skew correction software. Scans and transmits image data at 100, 200 or 400 dpi (command selectable). Hinged transport design opens effortlessly for easy access to the document path for read head cleaning. Optional inkjet print head available for endorsing checks or other printing requirements. |
|---|---|
| Specifications | DC POWER REQUIREMENTS WITH THERMAL PRINTER OPTION DATA DETECTION/SCAN HEAD WEIGHT IMAGE DATA DOCUMENT SPEES/TRANSPORT TIME TEMPERATURE RELATIVE HUMIDITY (non-condensing) |
| Features | It’s here… the New EZscan V from PDI… the high-speed half-page scanner that provides the highest quality image available on the market. EZscan IV is ideal for a variety of applications including point of sale for lottery, wagering, test scoring, banking and business forms. EZscan IV automatically transports and scans forms from A6-size down to 2.75 inch-wide personal checks… and its bi-directional transport permits straight through or reciprocating operation. EZscan IV connects with a high-speed USB 2.0 port and can scan both sides of a form simultaneously. The scanner’s hardware and software automates form design, expedites form handling and simplifies data decoding. The scanner captures document images with command selectable at 100, 200 or 400 dpi and scans forms on a line-by-line basis up to 22 ips. Image data is available in 8-bit grayscale or bitonal (b/w) formats. Proprietary PC software decodes mark-sense data (OMR), OCR, bar code and MICR data. The mechanism is designed for an easy fit as an OEM subassembly into most terminal enclosures. Bi-directional transport permits straight through (eject rear) or reciprocating (eject front) operation…with the ability to pay Brand or cancel a paid ticket with a high-density thermal print head or ink-jet print head prior to ejecting. An advanced optical system design provides the highest quality image available by minimizing sensitivity to creases and folds which results in unparalleled accuracy and successful data decode. Handles forms in sizes ranging from 2.75” wide personal checks up to a maximum of 4.25” W. x 11.00” L. or A6-size documents. Contains document skew correction software. Scans and transmits image data at 100, 200 or 400 dpi (command selectable). Hinged transport design opens effortlessly for easy access to the document path for read head cleaning. Optional inkjet print head available for endorsing checks or other printing requirements. |
|---|---|
| Specifications | DC POWER REQUIREMENTS WITH THERMAL PRINTER OPTION DATA DETECTION/SCAN HEAD WEIGHT IMAGE DATA DOCUMENT SPEES/TRANSPORT TIME TEMPERATURE RELATIVE HUMIDITY (non-condensing) |
Purpose-built technology you can trust. Unlike one-size-fits-all solutions, our OEM hardware is engineered for specific industrial applications, delivering the reliability, durability, and performance businesses depend on every day. Designed to integrate seamlessly into mission-critical systems, our devices provide the precision and longevity that modern operations demand.
Our devices are built to operate under continuous use, withstanding the rigors of real-world conditions across industries.
From scanning to card reading, our hardware delivers fast, precise results that software alone can’t replicate.
Designed for seamless integration with existing systems – no guesswork, no excessive configuration.
Physical hardware offers a level of security that software-based tools can’t match, especially in regulated industries like voting, transportation, and gaming.
Our products are at work in systems used by governments, transit authorities, and lottery commissions worldwide.
Built to last, our equipment ensures years of dependable service with minimal (when non-existent) maintenance.
