A motorized insertion type of MS & IC card reader/writer module with RS-232C interface which encodes/decodes data on triple tracks of MS & IC card in accordance with ISO-7810, 7811/7816. This is a high reliable, durable device which offers accurate and efficient card encoding for customer business and industrial applications.
- Triple DES Encryption
- Mag Stripe Card Read/Write
- IC Contact Card Read/Write
- Write LoCo / HiCo
- T=0, T=1 Protocol (default)
- Customized Protocol available
- Easy to Upgrade Firmware
- 4 x SAM (option)
- Electric or Mechanical Shutter available
- Motorized Reader/Writer

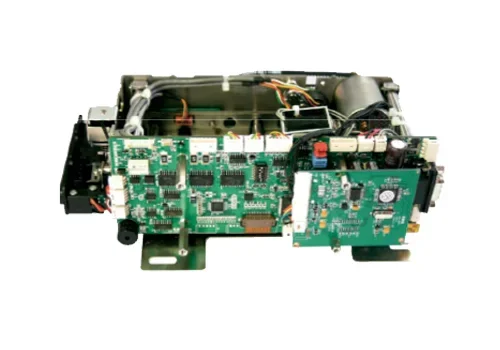

- EDM – 4000 Series
- Applications:
- ATM / Cash Dispenser
- Kiosk (information & payment)
- Door Lock System
- Parking Lot System
- Vending Machine
- POS System
- Highway Tollgate System
Card Standard Magnetic – ISO-7810, 7811; IC – ISO/IEC-7816, SLE4418/28, SLE4442
Power DC 24V ± 10% (default) / DC 12V ± 10% (option)
Communication TTL / RS-232C / USB
Dimensions 129 x 82 x 207 mm
Life Time Mag Head: Min. 2,000,000 cycles; IC Contacts: Min. 700,000 contacts
Feeding Speed 300 mm/sec. + 10%
Environment Operation: 5 ~ 50°C / 20 ~ 90% RH; Storage: -20 ~ 70°C / 0 ~ 90% RH
