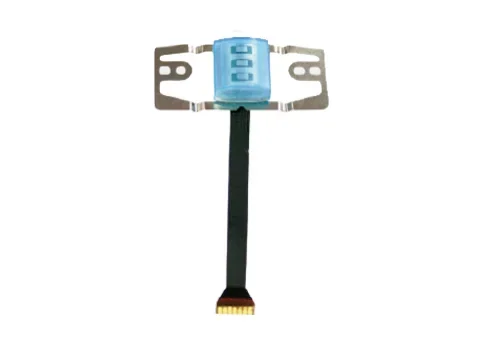

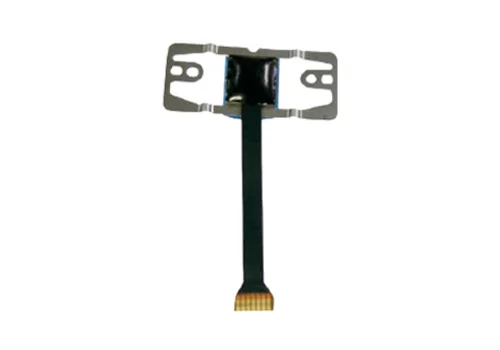

Head Assembly type module that reads magnetically encoded data from magnetic stripes that conform to ISO standards. Head Assembly type module is composed of a magnetic head assembly and circuit board attached to the head.

  • Card Standard: ISO-7810, 7811
  • ISO-1,2,3 Full Track Read (LoCo / HiCo)
  • F-PCB Mesh Type
  • Universal Head Mounting Makes Switching
  • Between Tracks Quick and Easy

Operating Voltage 3.3V DC +/- 5%
Ripple Less then 50 mVp-p
Power Consumption Less then 5.0 mA
Feeding Speed 15 ~ 95 cm/secStorage Temperature -20°C ~ 70°C, less than 95% RH
Operating Temperature 0°C ~ 50°C, 20 ~ 90% RH
Head Life Time 1,000,000 passes minimum
Dimensions 38 (W) x 62.55 (D) x 9 (H) (mm)
