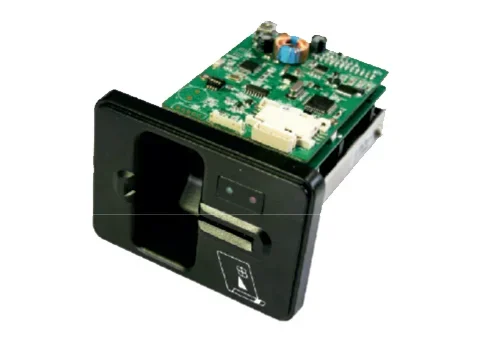

EDM-9600

A lower power hybrid insertion type card reader that decodes magnetic stripe data as well as reads/writes to smart cards
This industry-standard footprint reader uses an RS232 interface and is widely used worldwide in self-service, payphone, and banking applications for more than a decade.
Features

Features:
Triple DES Encryption
Mag Stripe Card Read
IC Contact Card Read/Write
T=0, T=1 Protocol
Easy to Upgrade Firmware

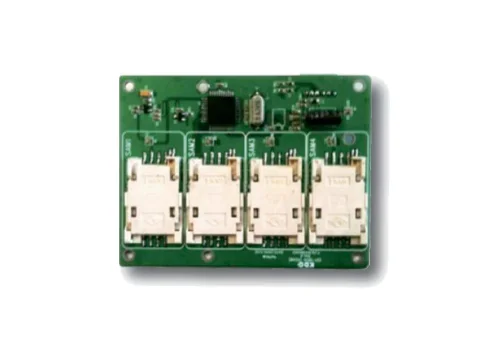

1 x SAM / 4 x SAM module (option)
LED Indicators
Motor Locking
EMV Level 1

Applications:
ATM / Cash Dispenser
Vending Machine
Kiosk (information & payment)
POS System

Specifications

Card Standard
Magnetic – ISO-7810, 7811; IC – ISO-7816

Power
DC 5V ± 5%

Communication
TTL / RS-232C / USB

Life Time
Mag Head: Min. 500,000 cycles; IC Contacts: Min. 700,000 contacts

Environment
Operation: 5 ~ 50°C / 0 ~ 90% RH; Storage: -20 ~ 70°C / 0 ~ 90% RH

Dimensions
99 x 73 x 120 mm
