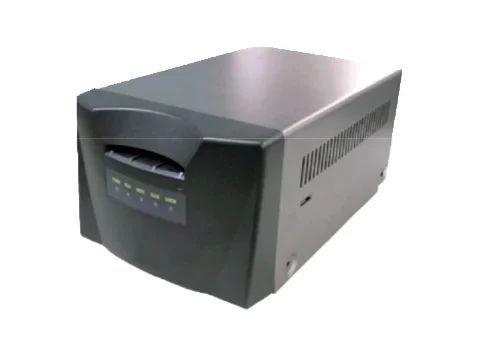

A motorized slim type MS & IC card reader/writer terminal with RS-232C & USB interface which encodes/decodes data on triple tracks of MS & IC card in accordance with ISO-7810, 7811/7816. It has a built-in power supply and LED’s which indicates the status of its operation. This is a highly reliable and durable device.
- Cycle Counting for Head, Solenoid, Flash Write
- Triple DES Encryption
- Mag Stripe Card Read/Write
- IC Contact Card Read/Write
- Write LoCo / HiCo
- T=0, T=1 Protocol (default)
- Customized Protocol available
- Easy to Upgrade Firmware
- EMV Level 1
- Applications:
- Door Lock System
- Parking Lot System
- Highway Tollgate System
Card Standard Magnetic – ISO-7810, 7811; IC – ISO/IEC-7816, SLE4418/28, SLE4442;
Power AC 110 ~ 220V, 50 ~ 60hz
Communication RS-232C / USB / LAN
Dimensions 148 x 100 x 225 mm
Life Time Mag Head: Min. 2,000,000 cycles; IC Contacts: Min. 700,000 contacts
Feeding Speed 280 mm/sec. + 20%
Environment Operation: 5 ~ 50°C / 20 ~ 90% RH; Storage: -20 ~ 70°C / 0 ~ 90% RH
