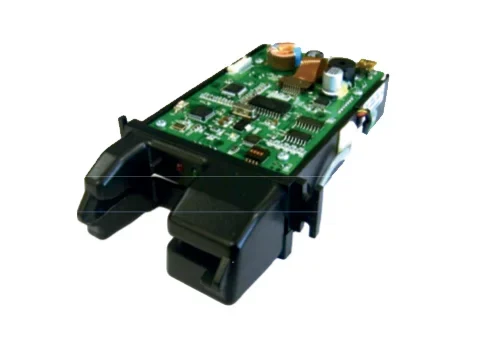

A manual insertion type of MS & IC card reader that reads up to three tracks of MS data and reads/writes IC card. It can be easily programmed & configured to match application and communication requirements from customers. It combines MS & IC card reading capabilities into a compact solution and will be your ideal choice for demanding OEM applications.

  • Triple DES Encryption
  • Mag Stripe Card Read
  • IC Contact Card Read/Write
  • T=0, T=1 Protocol
  • Easy to Upgrade Firmware
  • USB Interface & USB Powered (5V)
  • LED Indicators
  • Solenoid Locking
  • EMV Level 1

Applications:

  • ATM / Cash Dispenser
  • Vending Machine
  • Kiosk (information & payment)
  • POS System
  • Card Standard Magnetic – ISO-7810, 7811; IC – ISO-7816
  • Power DC 5V ± 5%
  • Communication TTL / RS-232C / USB
  • Life Time Mag Head: Min. 500,000 cycles; IC Contacts: Min. 700,000 contacts
  • Environment Operation: 5 ~ 50°C / 0 ~ 90% RH; Storage: -20 ~ 70°C / 0 ~ 90% RH
  • Dimensions 99 x 73 x 120 mm
